Lupum BSP Thread Bulla desinit ED signantes 1CB-WD / 1DB-WD Suppliers, Factory - Zhejiang Tianxiang Machine Fittings Co.,Ltd.

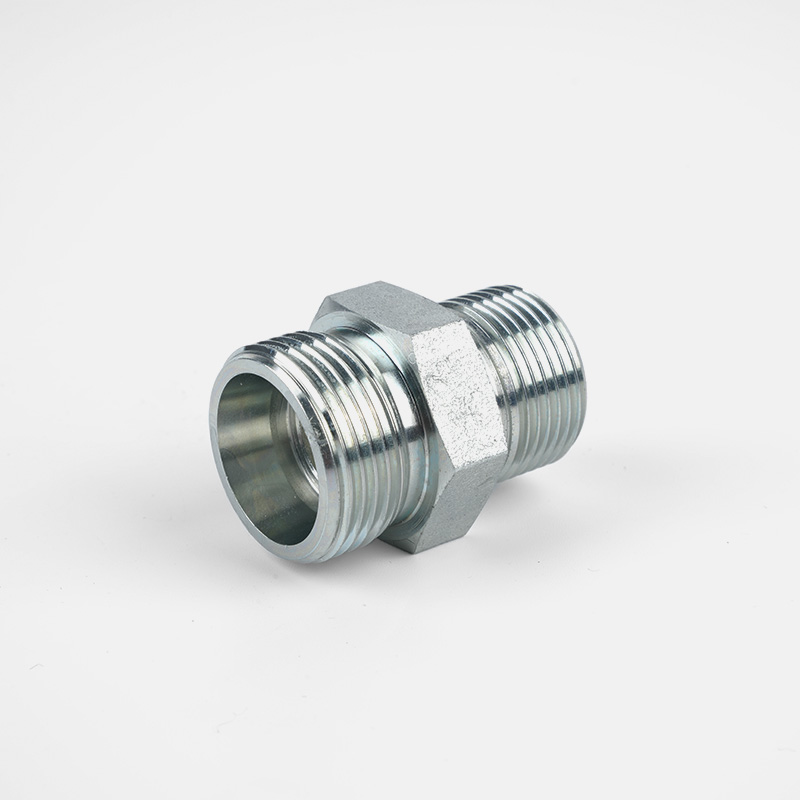

1CB-WD/1DB-WD BSP Sequela 60° Cone Obsignatio seu Bonded Sigilli Stud Fines caerimoniae, amplis plumbi et electrica ductum systemata destinati. Utrum opus iungere ad duas fistulas vel in unum fistulas tenues, 1CB/1DB BSP compressio hydraulica apta cum suis 60-gradu pyramidis sedis obsignatio vel claua claui sigilli religata, bona solutio est.

PATR NO.	FILUM		TUBE O.D.	DIMENSIONES
PATR NO.	E	F	D1	B	l1	L2	S1	S2
1CG-12-02	M12x1.5	G1/8x28	6	9.5	8.5	23	14	14
1CG-12-04	M12x1.5	G1/4x19	6	10	10	25	19	14
1CG-14-04	M14x1.5	G1/4x19	8	10	10	25	19	17
1CG-14-06	M14x1.5	G3/8x19	8	11.5	11.5	26	22	17
1CG-14-08	M14x1.5	G1/2x14	8	14	13	27.5	27	34
1CG-16-04	M16x1.5	G1/4x19	10	10	11	26	19	19
1CG-16-06	M16x1.5	G3/8x19	10	11.5	12.5	27	22	19
1CG-16-08	M16x1.5	G1/2x14	10	14	14	29	27	19
1CG-18-06	M18x1.5	G3/8x19	12	11.5	12.5	27	22	22
1CG-18-08	M18x1.5	G1/2x14	12	14	13	28	27	22
1CG-22-06	M22x1.5	G3/8x19	15	11.5	13.5	29	24	27
1CG-22-08	M22x1.5	G1/2x14	15	14	14	29	27	27
1CG-22-12	M22x1.5	G3/4x14	15	15.5	20	30	32	32
1CG-26-08	M26x1.5	G1/2x14	18	14	14.5	31	27	32
1CG-26-12	M26x1.5	G3/4x14	18	15.5	14.5	32	32	32
1CG-30-12	M30x2	G3/4x14	22	15.5	16.5	33	32	36
1CG-30-16	M30x2	G1"x11	22	18	17.5	35	41	36
1CG-36-16	M36x2	G1"x11	28	18	17.5	34	41	41
1CG-45-20	M45x2	G1.1/4x11	35	20	17.5	39	50	50
1CG-52-20	M52x2	G1.1/4x11	42	20	19	42	55	60
1CG-52-24	M52x2	G1.1/2x11	42	21.5	19	42	55	60
1CG-52-32	M52x2	G2"x11	42	24.5	25	44	70	60
1DG-14-04	M14x1.5	G1/4x19	6	10	13	28	19	17
1DG-16-04	M16x1.5	G1/4x19	8	10	15	31	19	19
1DG-18-04	M18x1.5	G1/4x19	10	10	14.5	31	19	22
1DG-18-06	M18x1.5	G3/8x19	10	11.5	15	31	22	22
1DG-20-06	M20x1.5	G3/8x19	12	11.5	17	32	22	24
1DG-20-08	M20x1.5	G1/2x14	12	14	17.5	34	27	24
1DG-22-06	M22x1.5	G3/8x19	14	11.5	19	37	24	27
1DG-22-08	M22x1.5	G1/2x14	14	14	19	37	27	27
1DG-24-04	M24x1.5	G1/4x19	16	11	18	37	27	30
1DG-24-08	M24x1.5	G1/2x14	16	14	18.5	37	27	30
1DG-30-12	M30x2	G3/4x14	20	15.5	20.5	42	32	36
1DG-36-12	M36x2	G3/4x14	25	15.5	23	47	41	46
1DG-36-16	M36x2	G1x11	25	18	17.5	47	41	46
1DG-42-16	M42x2	G1x11	30	18	23.5	48	46	50
1DG-42-20	M42x2	G1.1/4x11	30	20	23.5	50	50	50
1DG-52-24	M52x2	G1.1/2x11	38	21.5	26	57	55	60
