JIC Male 74° Cone Seat

JIC Male 74° Cone Seat

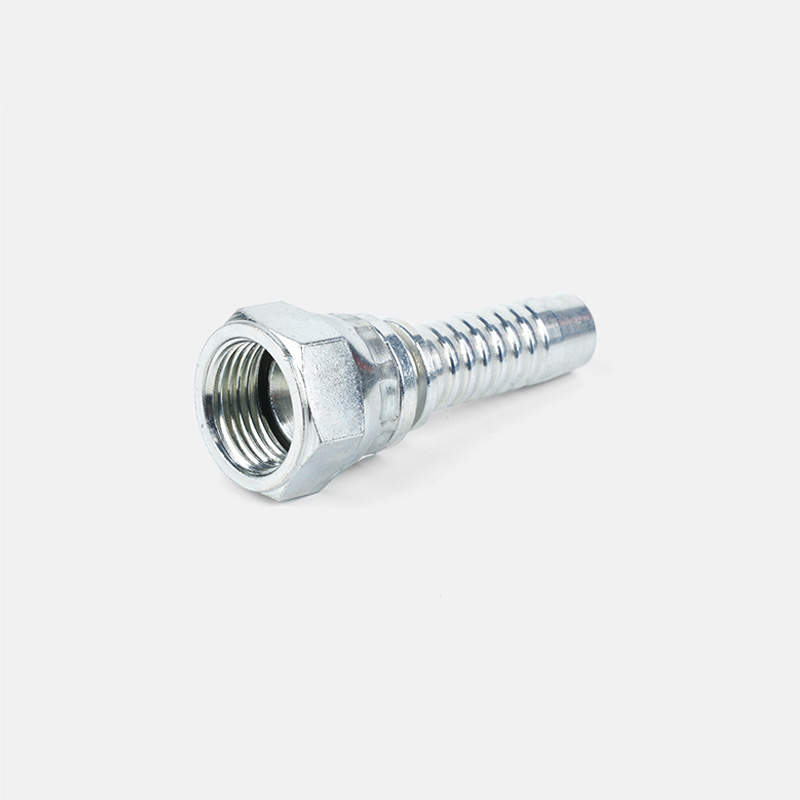

JIC FEMALE 74° CONE SEDES SIGILLIS (26711)
Materia: carbo chalybs, chalybs immaculata, aes;
Superficiem tracta: galvanize Crocus cadmiam, Zincum nigrum, Cr6 liberum cadmiam, et Nickel;
Applicatio: late usus est in systemate hydraulica et fluido machinis, oleis, fodinis, aedificiis, vecturis, alimentis, aliisque industriis.
Materia: Carbon chalybs et Steel
Ars: Forged
Typus: Hose Fittings
Originis locus: ZHUJI, Sina (continens)
Nomen notam: TIANXIANG
Connection: Thread
Figura: Aequalis
Caput Code: Hexagon
OD Size: 1/4 ad 2"  6mm ad 51mm
Structura: Rectus
Opus Pressura: ad 6000psi
Medium: aqua, oleum, gas, acidum, basi et cetera
Specialis curatio: ferrule duritia curatio
Nux Curatio: argentum plantatum
Curatio tubus: plene annealed
Interiorem Cone: Speculum tincidunt processus
Temperature laborantis: -20 ad 200 Celsius degree
  • JIC Male 74° Cone Seat
Contact Us
  • Specification

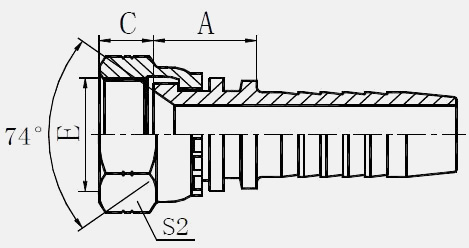

    PARS NO. FILUM E* HOSE BORE DIMENSIONES
    DN IMPETUS A C S2
    26711-04-03 7/16"X20 5 03 14.5 9 15
    26711-04-04 7/16"X20 6 04 15 9 15
    26711-05-04 1/2"X20 6 04 15.5 9.5 17
    26711-05-05 1/2"X20 8 05 15.5 9.5 17
    26711-05-06 1/2"X20 10 06 15.5 9.5 17
    26711-06-04 9/16"X18 6 04 15.5 10.5 19
    26711-06-05 9/16"X18 8 05 15.5 10.5 19
    26711-06-06 9/16"X18 10 06 15.5 10.5 19
    26711-06-08 9/16"X18 12 08 16 10.5 19
    26711-08-06 3/4"X16 10 06 17.5 11

    24

    26711-08-08 3/4"X16 12 08 18 11 24
    26711-08-10 3/4"X16 16 10 19.5 11 24
    26711-10-08 7/8"X14 12 08 18.5 13 27
    26711-10-10 7/8"X14 16 10 20 13 27
    26711-10-12 7/8"X14 20 12 20 13 27
    26711-12-08T 1.1/16"X12 12 08 19 15 32
    26711-12-10 1.1/16"X12 16 10 21.5 15 32
    26711-12-12 1.1/16"X12 20 12 21.5 15 32
    26711-12-16 1.1/16"X12 25 16 23 15 32
    26711-14-12 1.3/16"X12 20 12 21.5 15 36
    26711-16-12T 1.5/16"X12 20 12 18.5 16 41
    26711-16-16 1.5/16"X12 25 16 23 16 41
    26711-16-20 1.5/16"X12 32 20 24 16 41
    26711-20-16T 1.5/8"X12 25 16 23 17 50
    26711-20-20W 1.5/8"X12 32 20 26 17 50
    26711-24-20W 1.7/8"X12 32 20 26.5 20 55
    26711-24-24W 1.7/8"x12 40 24 26.5 20 55
    26711-32-24T 2.1/2"X12 40 24 27 23.5 75
    26711-32-32T 2.1/2"X12 50 32 27 23.5 75
